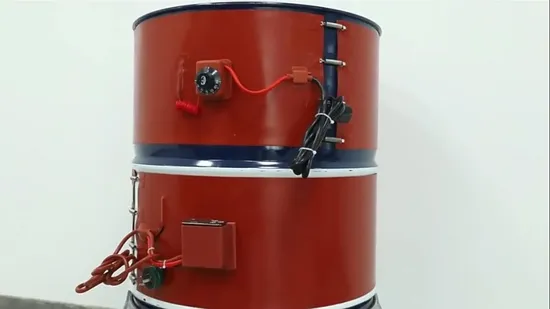

Silicone Rubber Heater Blanket Surface Heater in High-Efficiency Heating

Basic Info

Model NO.	JY-SH010
Wattage	Customized
Logo Mark	Make as Customer Required
Insulation	Red Sponge Insulator
Heating Element	Nickel-Chromium or Copper-Nickel Resistance Wire W
Output	up to 5kw/M2
Size/Shape Limitations	Maximum Width of 48 Inches, No Maximum Length
Minimum Size	20mm*20mm
Thickness	4.5mm Note: There Is an Extra Thickness at The Con
Transport Package	Carton
Specification	Customized
Trademark	Jaye
Origin	China
HS Code	851680000
Production Capacity	100000PCS/Month

Product Description

Silicone Rubber Heater Blanket Surface Heater In High-efficiency Heating

The silicone rubber heater has advantages of thinness, lightness and flexibility. It can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone rubber stabilizes the dimension of heaters.

Features:Designed according to actual shape and dimension, including three-dimensional geometry to meet the requirement of your equipment. Moistureproof and non-slip silicone rubber material offers longer working life of heaters.Simply sticking to your components through sulfuration, adhesive or fixer.

Appliance:Freezing protection and anti-pressure, can be used in all kinds of instruments and equipmentsApplied in the medical equipments such as blood analyzer, test pipe heater, etcThe auxiliary equipments of computer such as laser printer, etc Plastic film sulfuration

Surface Temperature VS. Time:
This drawing explains the surface temperature of a silicone rubber heater when it is not insulated and be put vertically at 20 ºC still air. The data is supported as reference tool according to the standard structure of 1.4mm thickness.

Technical Parameters

Dimension	Dimensions on request
Thickness	4.5mm Note: There is an extra thickness at the connection point.
Heating element	Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core	Nickel-Chromium or a Copper-Nickel resistance wire
Voltage	Any voltage on request(Any AC or DC)
Output	Up to 5KW/M2
Tolerance	±10% on resistance
Max surface temperature	300 degree
Min exposure temperature	-60 degree
Size/Shape Limitations	Maximum width of 48 inches, no maximum length

Product Photo:

Construction:



Related Products:

Production Line:

Certificate:



FAQ (1)
Q: Will you accept customized requirement?
A: Of course, customized service is surely acceptable. Welcome to send us your drawing and more detailed specification parameters. We can supply you the products as per your specific requirements. (2)
Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quantity is small and customers only need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, we will charge a sample fee.(3).
Q: Why does your price a bit higher than other Chinese suppliers?
A: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.(4).
Q: How can you guarantee the quality of mass production keep the same with the sample sent to me before?
A: Our warehouse staff will leave another same sample with your company name marked in our company before sending the samples to you to ensure the same production as the samples.
