Mold Water Industrial Rod Stainless Steel Tubular Cartridge Resistance Pencil Brass Nozzle Band Heater for Injection Molding Machine

Basic Info

After-Sales Service Provided	Overseas Third-Party Support Available
Power	50W-10kw
Resistance Heating Wire	Nicr 80/20 Wire
Insulation Resistance (Cold)	≥ 500 MΩ
Length Tolerance	±1 mm
Resistance Tolerance	+10%, -5%
Dia Tolerance	+0.05mm -0.1mm (+.002" -.004")
Voltage	12-380V
Transport Package	Paper Box
Specification	can be customized
Trademark	Cheri
Origin	China
HS Code	8516800000
Production Capacity	100000/Year

Product Description

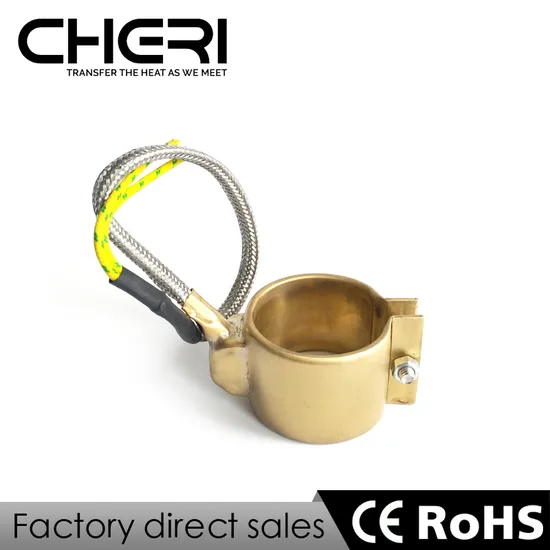

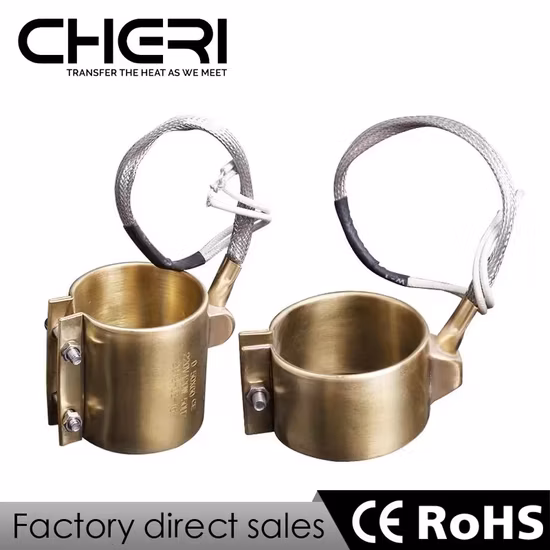

Extruder Band HeatersMade of mica/ceramic insulation, nickel chrome heating wire and stainless steel sheath,Extruder band heaters are the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry.We can produce vatious shapes to accomodate different applications and industries.All Customer Design Requirements such as European plugs, terminal boxes, wire leads, post terminalsand tapped thermocouple brackets are available from our factory to service Asian, European, American Market , etc.

Features

Easy to install

Long service life

Good Temperature Uniformity

Highly flexible, durable

Quick to respond to controls Two-Piece Bands are available per request

Due to the various shapes and specifications, it is impossible to display all of them. If you need to customize please contact customer service.

Product Parameters

Product Name	Extruder Band Heaters
Band Voltage	120V 220V 230V 240V 480V etc (under customer request)
Max working temperature	550 degree celsius
Resistance Wire Type	NiCr 80/20
Sheath Material	Brass
Insulation Material	Mica/ceramic
Band Construction	One-piece or Two-Piece
Gap Locking Mechanism Type	Flange, Barrel Nuts or None
Lead Exit Position	Standard or Customized
Termination Style	Standard lead, Screw terminal; 2-Pin Euro Plug or 3-Pin Euro Plug
Holes availability	Customer- Design
Notches availability	Customer- Design

Certifications

Order Information

1.About product ordering: The above product pictures are for reference only, drawings or samples must be provided for ordering.2.About the online price: the online price is the sample price, and the bulk price needs to be determined according tothe product drawing and quantity. Please continue to contact customer service or call the company phone to confirm.3.About delivery: nonstandard customized products have certain production processes, and the actual delivery date is subject to customer service confirmation.
